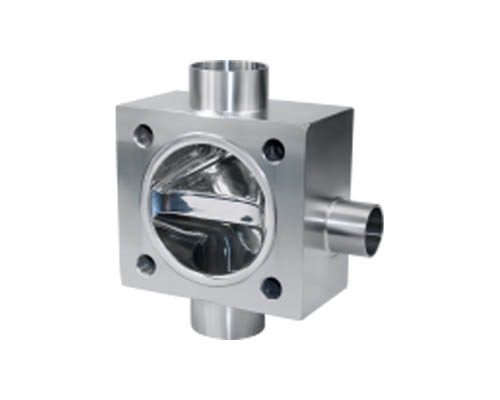

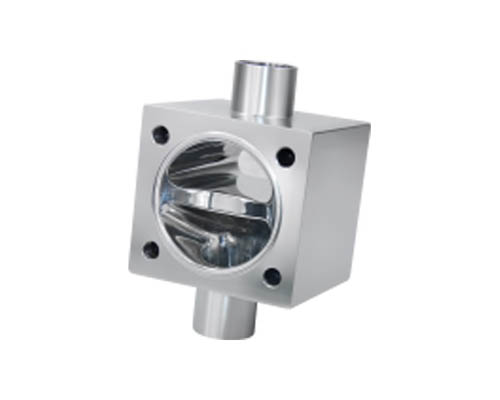

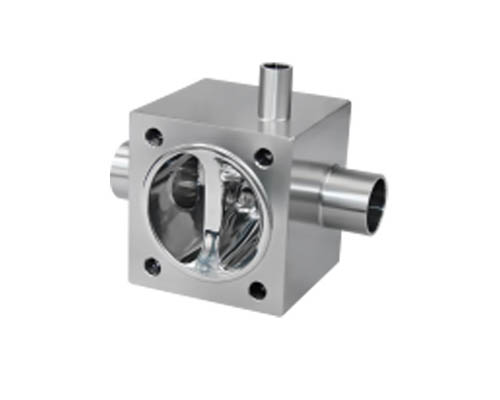

Multi port Diaphragm Valve M-32E
Multi port Diaphragm Valve
Multi port Diaphragm Valve M-32E
Multi port Diaphragm Valve
Multi port Diaphragm Valve

Multi port Diaphragm Valve M-32E

Technical Specifications

Multi port Diaphragm Valve M-32E
2 control valves, 3 ports
Dead zone = ≤ 1D
Size: 1"-2",DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe＜0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor
