Applications

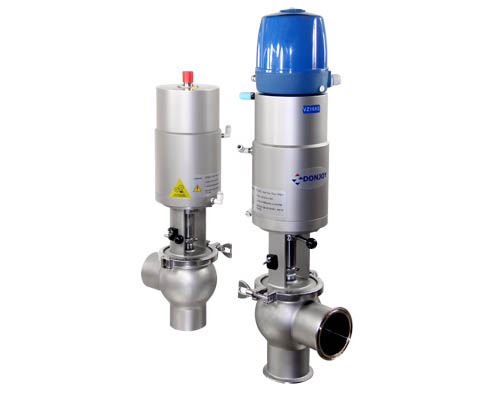

The reversing seat valve is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
Valve position adjustable valve can achieve flow adjustment wrench. This configuration has the advantage of low cost to achieve the same flow regulation purposes.
Technical specifications
● Size: DN25 / 1 "to DN100 / 4"
● Temperature: -20℃～150℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
