Applications

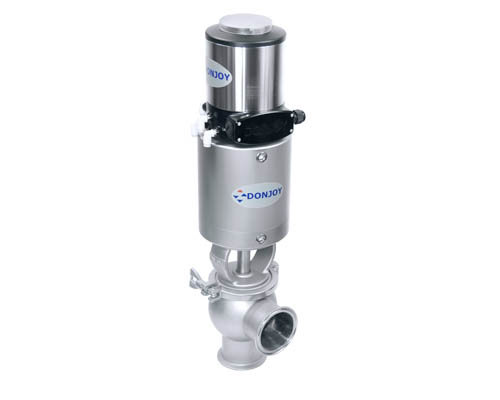

Reversing globe valve with slow device, adjusting the regulator can reduce the actuator speed, prevent clash of the valve core and the valve body to prevent vibration, as well as prolong the service life of the sealing ring.
Technical specifications
● Size: DN25 / 1 "to DN100 / 4"
● Temperature: -20℃～150℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
