TECHNICAL SPECIFICATIONS:
Single key automatic setting
Valve anti-leakage function
Valve fault feedback function

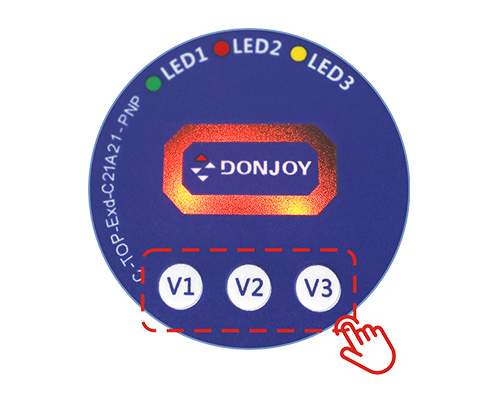

Different valve positions display different colors of LED lights
Signal feedback: PNP NPN passive contact 4-20mA
Bus communication: IO-Link; AS-I V3.0
Power supply: DC24V ±10%
Stroke: 60mm; 30mm
The precision of valve position can be set on site: 0.2mm, 0.5mm, 1mm, 2mm, 3mm
High and low color can be set on site

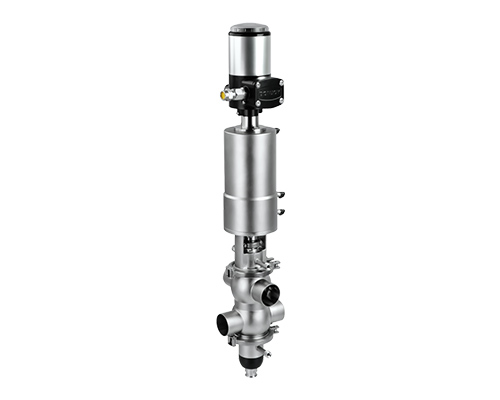

C-TOP-21A21 is a Ex d explosion-proof valve control unit. It receives instructions from PLC/DCS or other automatic control systems to work, and feedback the current valve position signal to PLC/DCS and other automatic control systems. It can also communicate through IO-Link and AS-I V3.0 version bus. Each location will display its current status through a different location color LED light.
High precision, leakage proof valve, High efficiency, high cleanliness, precision can be set Push-button operation, no disassembly, flameproof & intrinsic safety explosion-proof double certification
| File | Description | Language | Size |
|---|---|---|---|
| Valve Control Unit | Valve control unit: straight stroke C-TOP-1721 / 1711/1881; rotary stroke C-TOP-1561 | English | 4.66MB) |
| Self-Control Valve | It includes various structure adjustment valves such as angle seat valve, globe valve, single seat valve, V-type ball valve, butterfly valve, etc. | English | 9.6MB) |
