Application

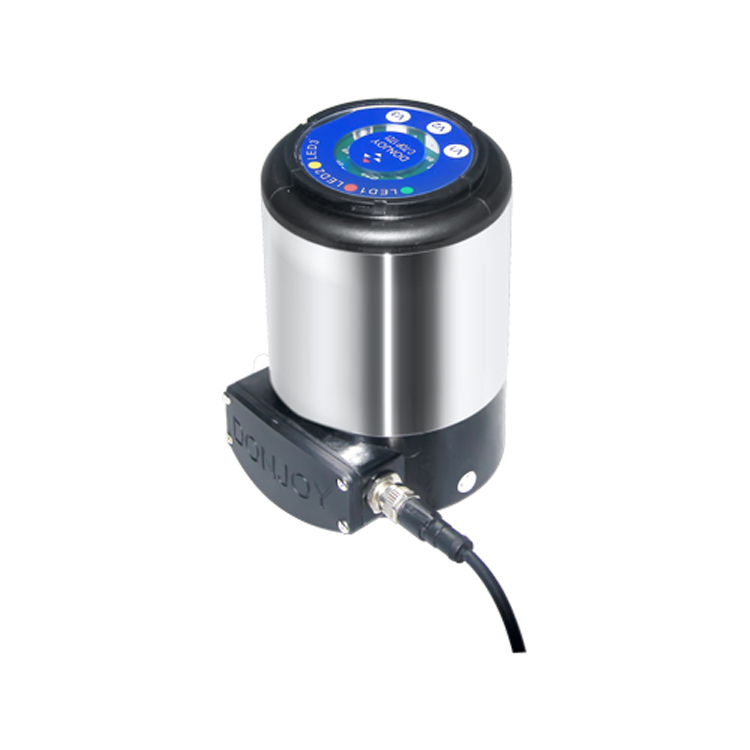

IL-TOP-2001 mini Digital valve positioner

It is a straight-stroke pneumatic valve positioner which can be installed on various pneumatic valves, such as pneumatic ball valves, pneumatic globe valves, pneumatic diaphragm valves, pneumatic angle seat valves, pneumatic control valves, etc. After the positioner is installed, it can realize valve flow adjustment, automatic control, and valve position display. The product has good appearance, small size, simple and convenient installation, and can be operated and debugged without professionals.

Technical specifications

Supply voltage : DC24V±10%

Control input :0-5V/10V;4-20mA
Feedback output : 0-5V/10V;4-20mA

 Accuracy: Repeated positioning accuracy ≤0.2%;…
Menu: OLED display Chinese & English Chinese & English
Tuning: One-button self-tuning function
Operation mode: manual/automatic
Malfunction: cut off gas, cut off power, automatic valve position reset (standard), valve position retention function (optional)

Stroke range: 0-30mm, 0-60mm
