TECHNICAL SPECIFICATIONS:
Input: 4-20 mA
Output: 4-20mA
Bus communication: HART 6/7

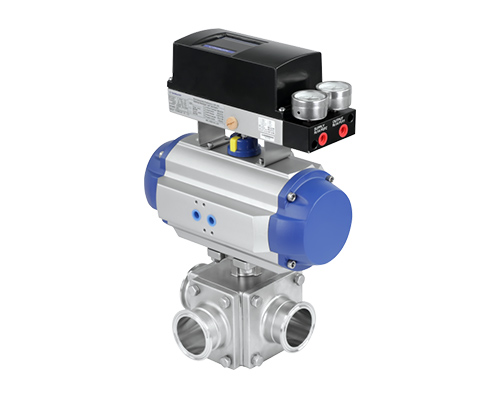

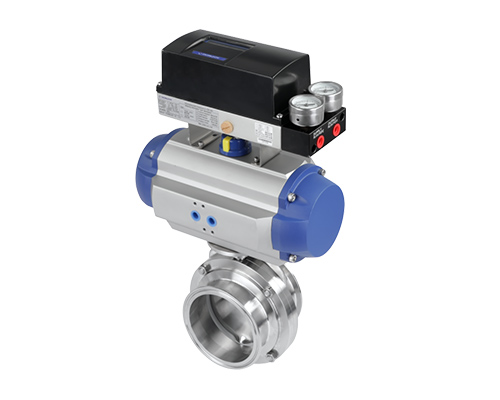

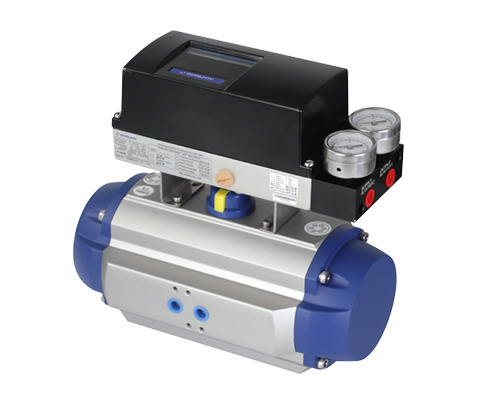

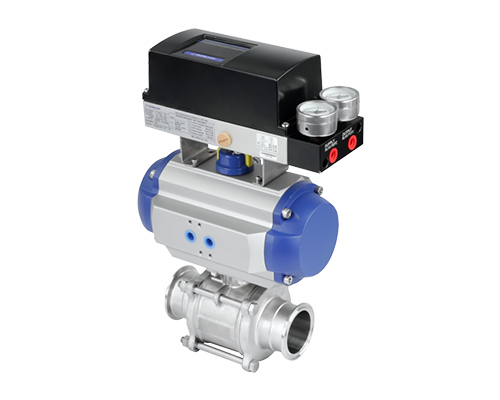

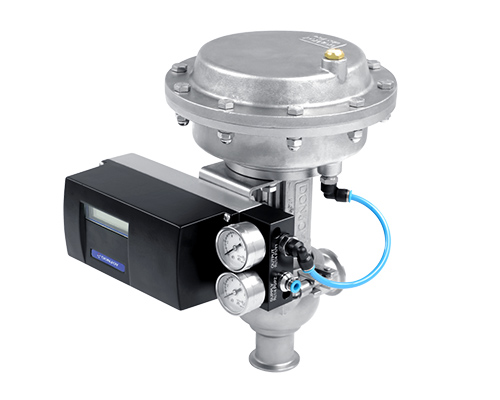

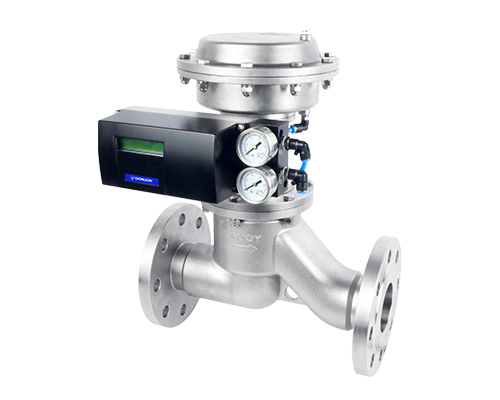

IL-TOP-1891 is a intrinsically safe explosion-proof design valve positioner, it receives from PLC/DCS or other automatic control system instructions such as 4-20mA to work, at the same time feedback the current valve position signal to PLC/DCS and other automatic control system, but also through HART6/7 version of the bus communication.

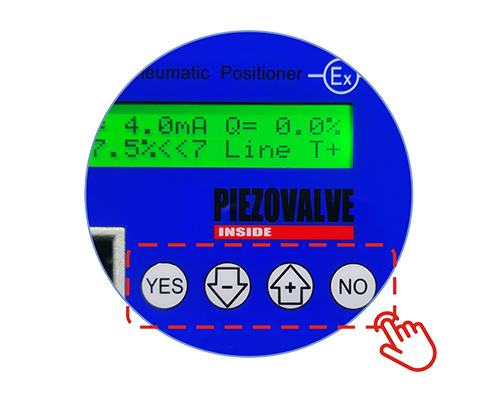

● Single button self-tuning
● Configurable precision
● Configurable safe range
● English/Chinese menu setting
● Repeated positioning accuracy error
● No air consumption when valve position is held
● Adjustable curve can be set
● Intrinsic safety explosion-proof certificate
● IP66 protection grade
| File | Description | Language | Size |
|---|---|---|---|
| Valves Positioner | The valve positioner is divided into: linear stroke IL-TOP-1831 / 1832; rotary stroke IL-TOP-1441 / 1891; | English | 4.66MB) |
| Self-Control Valves | It includes various structure adjustment valves such as angle seat valves, globe valves, single seat valves, V-type ball valves, butterfly valves, etc. | English | 9.6MB) |
